32-bit ARM RISC microcontroller featuring 55MHz operation and 512KB FLASH memory. This surface mount device offers 128KB RAM, 62 I/Os, and extensive interfaces including SPI, USB, CAN, Ethernet, I2C, and UART. Operating from 1.65V to 3.6V, it includes an internal oscillator, 3 timers, and peripherals like DMA, POR, and WDT. Packaged in TFBGA, this lead-free and RoHS compliant component operates between -40°C and 85°C.
Frequency55MHz
PackageTFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT91SAM7X512-CU technical specifications.
General
Package/Case
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
55MHz
Interface
SPI, USB, CAN, USART, I2C, Ethernet, UART, I2S
Lead Free
Lead Free
Length
9mm
Max Frequency
55MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of I/Os
62
Number of Programmable I/O
13
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
128KB
RoHS Compliant
Yes
Series
SAM7X
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip AT91SAM7X512-CU Datasheet
Download the complete datasheet for Microchip AT91SAM7X512-CU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

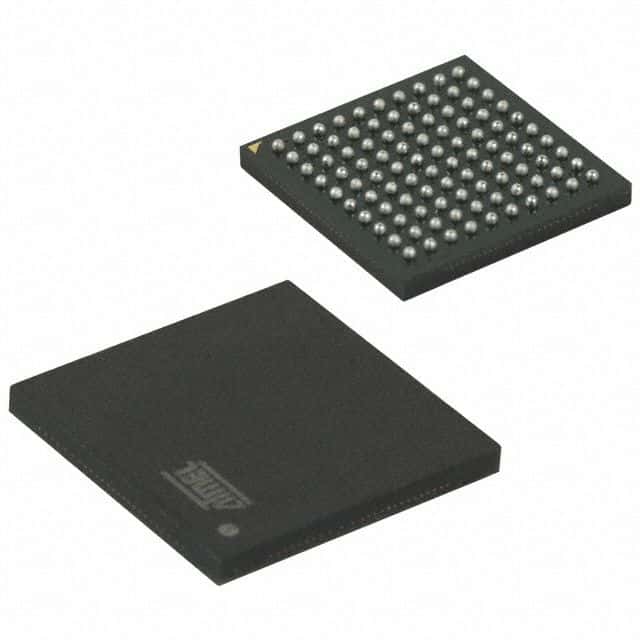

Product Images
