Technical Specifications
Microchip ATF1504ASL-20JC68 technical specifications.
General
Package/Case
J
Lead Free
Contains Lead
Max Frequency
83.3MHz
Max Operating Temperature
70°C
Memory Type
EEPROM,
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Gates
1500
Number of I/Os
48
Number of Macrocells
64
Number of Programmable I/O
48
Operating Supply Voltage
5V
Package Quantity
18
Packaging
Rail/Tube
RoHS Compliant
No
Series
ATF15xx
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATF1504ASL-20JC68 Datasheet
Download the complete datasheet for Microchip ATF1504ASL-20JC68 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

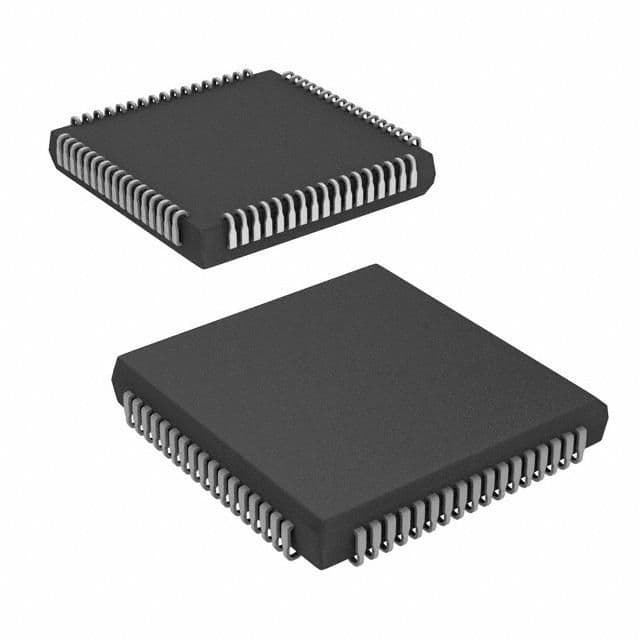

Product Images
