Frequency33.3MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF1508ASL-25QI160 technical specifications.
General
Package/Case
PQFP
Lead Free
Contains Lead
Max Frequency
33.3MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Gates
3000
Number of I/Os
96
Number of Macrocells
128
Number of Programmable I/O
96
Operating Supply Voltage
5V
Package Quantity
24
Packaging
Tray
RoHS Compliant
No
Series
ATF15xx
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATF1508ASL-25QI160 Datasheet
Download the complete datasheet for Microchip ATF1508ASL-25QI160 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

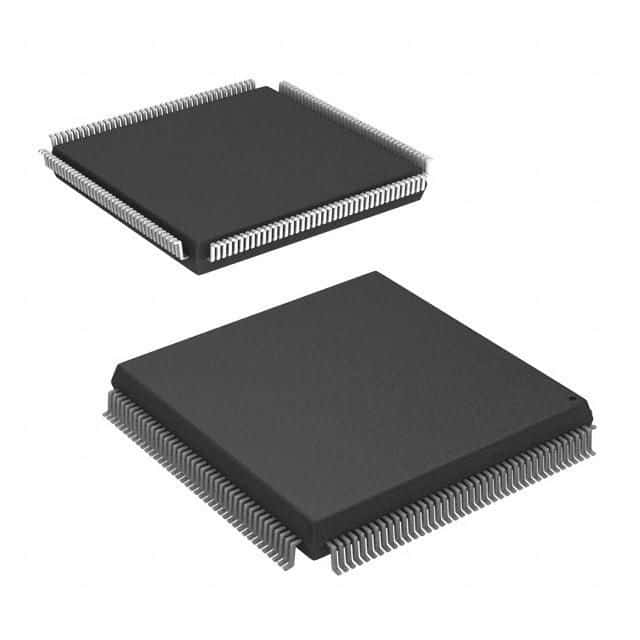

Product Images
