10ns access time, 125MHz frequency Simple Programmable Logic Device (SPLD) with 500 gates and 10 macro cells. Features a 5V operating voltage range (4.5V to 5.5V) and 10 I/Os. Surface mountable in a 28-pin PLCC package, operating from -40°C to 85°C. This RoHS compliant component offers a 10ns propagation delay.
Frequency125MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF22V10C-10JU technical specifications.
General
Access Time
10ns
Package/Case
PLCC
Frequency
125MHz
Height
4.572mm
Lead Free
Lead Free
Length
11.58mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
140mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Gates
500
Number of I/Os
10
Number of Macro Cells
10
Number of Macrocells
10
Packaging
Rail/Tube
Propagation Delay
10ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
22V10
Turn-On Delay Time
10ns
Width
11.582mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATF22V10C-10JU Datasheet
Download the complete datasheet for Microchip ATF22V10C-10JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

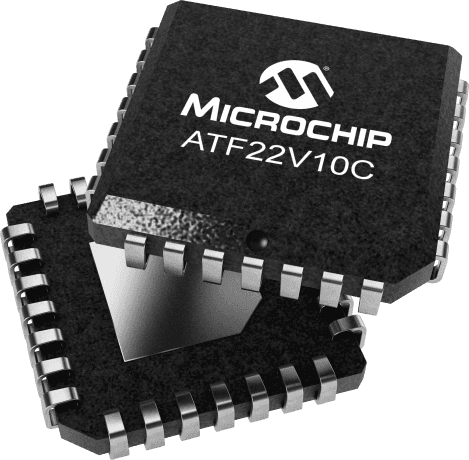

Product Images
