8-bit AVR microcontroller featuring 16KB Flash memory and 1KB RAM. Operates at up to 16MHz with an 8-bit address and data bus. Offers 32 programmable I/O lines, 3 timers/counters, and integrated peripherals including POR, PWM, and WDT. Supports SPI and USART interfaces, with 8 ADC channels. Packaged in a 44-pin TQFP (S-PQFP-G44) for surface mounting, operating within an industrial temperature range of -40°C to 85°C.
Frequency16MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA16-16AU technical specifications.
General
Access Time
16us
Address Bus Width
8b
Package/Case
A
Core Architecture
AVR
Data Bus Width
8b
Density
16KB
Frequency
16MHz
Height
1mm
Interface
SPI, USART
JESD-30 Code
S-PQFP-G44
Lead Free
Lead Free
Length
10mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Moisture Sensitivity Level
3
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/O Lines
32
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
3
Package Body Material
Plastic
Package Code
TQFP
Package Shape
Square
Packaging
Tray
Peak Reflow Temperature (Cel)
260°C
Peripherals
POR, PWM, WDT
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Tin
Terminal Form
Gull Wing
Terminal Position
QUAD
Time @ Peak Reflow Temperature-Max (s)
40s
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA16-16AU Datasheet
Download the complete datasheet for Microchip ATMEGA16-16AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

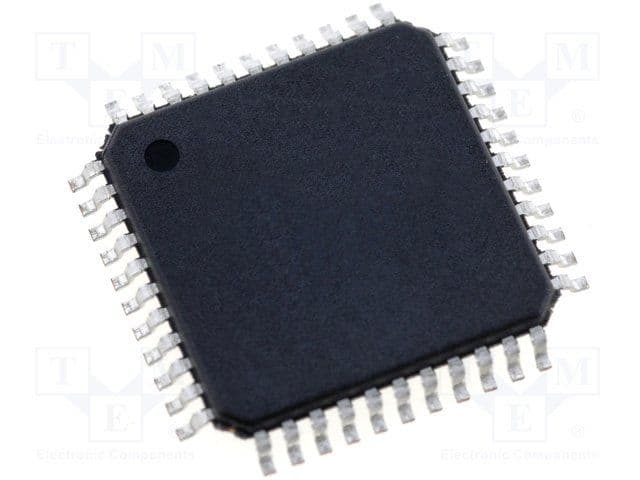

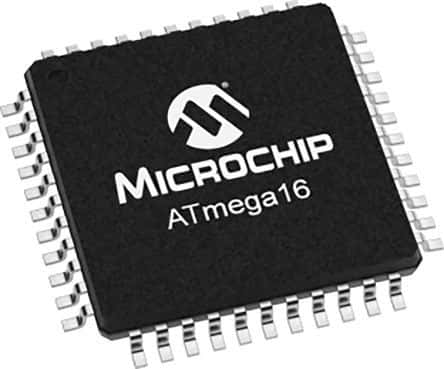

Product Images
