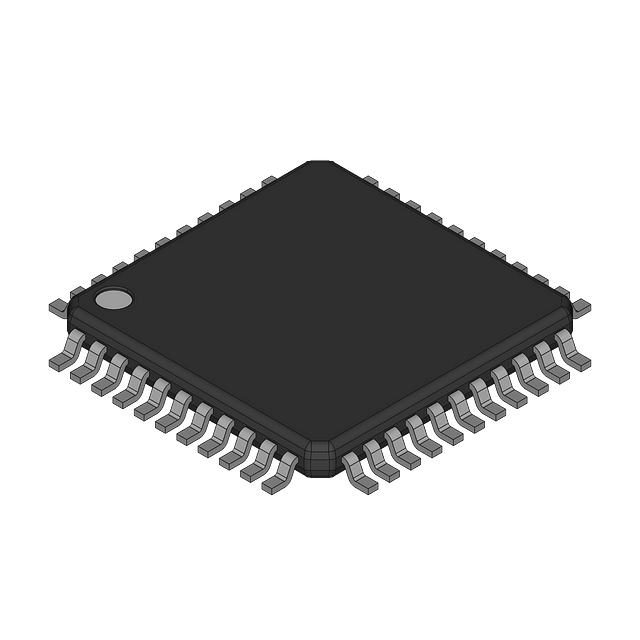

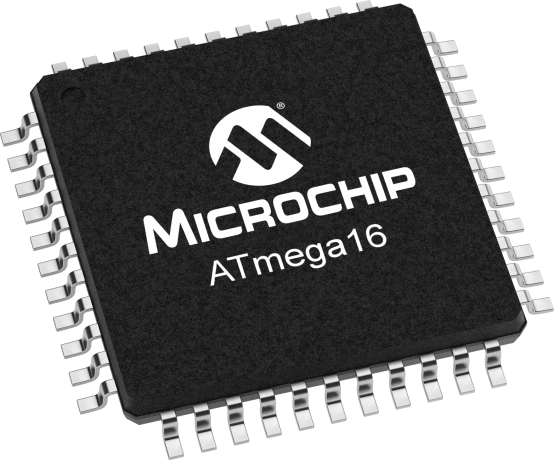

8-bit AVR microcontroller featuring 16KB Flash memory and an 8-channel Analog-to-Digital converter. Operates at a 16MHz frequency with a supply voltage range of 4.5V to 5.5V. Offers I2C, SPI, USB, and UART interfaces, along with 4 PWM channels. Packaged in a 44-TQFP (LQFP) with an operating temperature range of -40°C to 85°C. Includes peripherals such as Brown-out Detect/Reset, POR, and WDT.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATMEGA16-16AUR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Core Architecture | AVR |
| Frequency | 16MHz |
| Height | 1.2mm |
| Interface | I2C, SPI, USB, UART, USART |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 1 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RoHS Compliant | Yes |
| Series | AVR® 90SCR |
| RoHS | Compliant |
