8-bit AVR microcontroller with 16KB FLASH memory and 1KB RAM. Features an 8-bit data bus, 20MHz maximum frequency, and 23 programmable I/O pins. Supports SPI, Serial, USART, 2-Wire, I2C, and UART interfaces. Operates from 2.7V to 5.5V supply voltage with an access time of 20µs. Includes Brown-out Detect/Reset, POR, PWM, and WDT peripherals. Packaged in a VQFN surface mount case.
Frequency20MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA168-20MI technical specifications.
General
Access Time
20us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
20MHz
Interface
SPI, Serial, USART, 2-Wire, I2C, UART
Lead Free
Contains Lead
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
23
Number of Programmable I/O
23
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1KB
RoHS Compliant
No
Series
AVR® ATmega
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATMEGA168-20MI Datasheet
Download the complete datasheet for Microchip ATMEGA168-20MI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

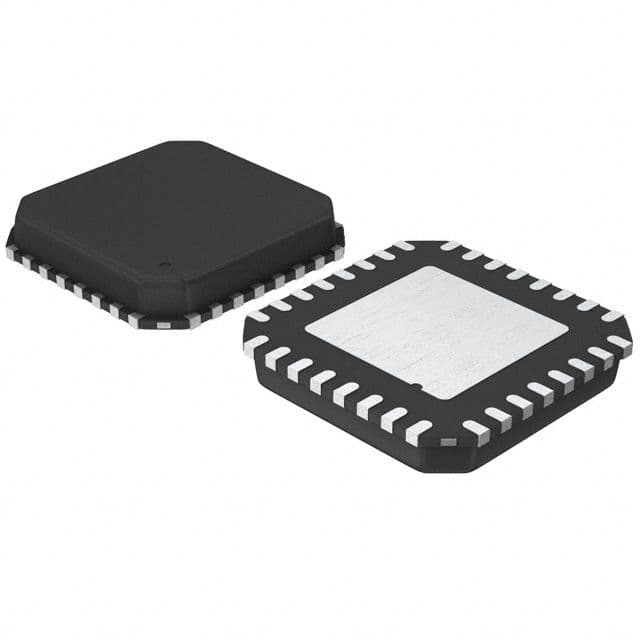

Product Images
