8-bit AVR microcontroller featuring 16KB FLASH memory and 1KB RAM. Operates at up to 16MHz with an 8-bit address and data bus. Includes SPI, UART, and I2C interfaces, along with 8 ADC channels and 4 PWM channels. Packaged in a 64-TQFP surface-mount case, this lead-free component supports a supply voltage range of 2.7V to 5.5V and operates from -40°C to 85°C. Integrated peripherals include LCD, POR, WDT, and Brown-out Detect/Reset.
Frequency16MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA169P-16AU technical specifications.
General
| Access Time | 16us |
| Address Bus Width | 8b |
| Package/Case | TQFP |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Density | 16KB |
| Frequency | 16MHz |
| Height | 1.05mm |
| Interface | SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 14.1mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of I/Os | 54 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
| Termination | SMD/SMT |
| Width | 14.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA169P-16AU Datasheet
Download the complete datasheet for Microchip ATMEGA169P-16AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

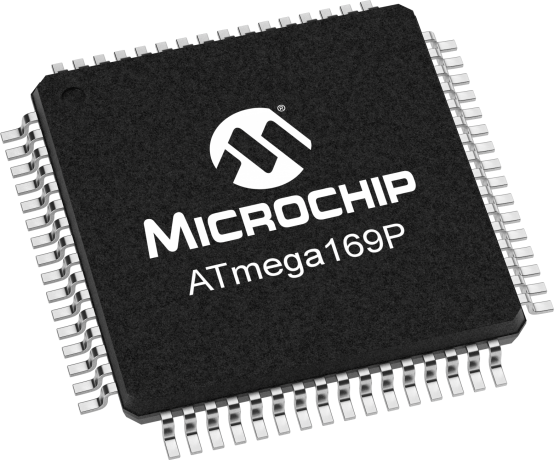

Product Images
