8-bit AVR microcontroller featuring 16KB Flash memory and 1KB RAM. Operates at up to 8MHz with an 8us access time. Offers 32 I/O pins, 8 ADC channels, and multiple interfaces including I2C, SPI, and UART. Includes 3 timers/counters, 4 PWM channels, and integrated peripherals like Brown-out Detect and Watchdog Timer. Supplied in a 44-pin VQFN surface mount package, operating from 2.7V to 5.5V, with a temperature range of -40°C to 85°C.
Frequency8MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA16L-8MU technical specifications.
General
Access Time
8us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Density
16KB
Frequency
8MHz
Height
1mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA16L-8MU Datasheet
Download the complete datasheet for Microchip ATMEGA16L-8MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

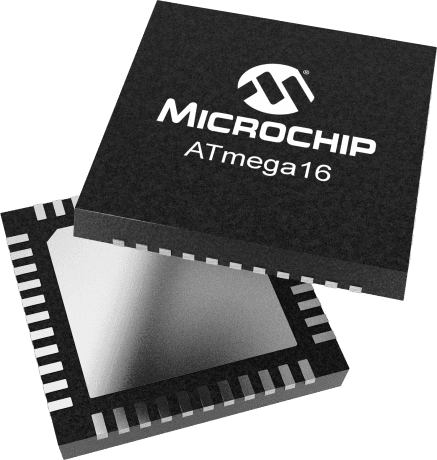

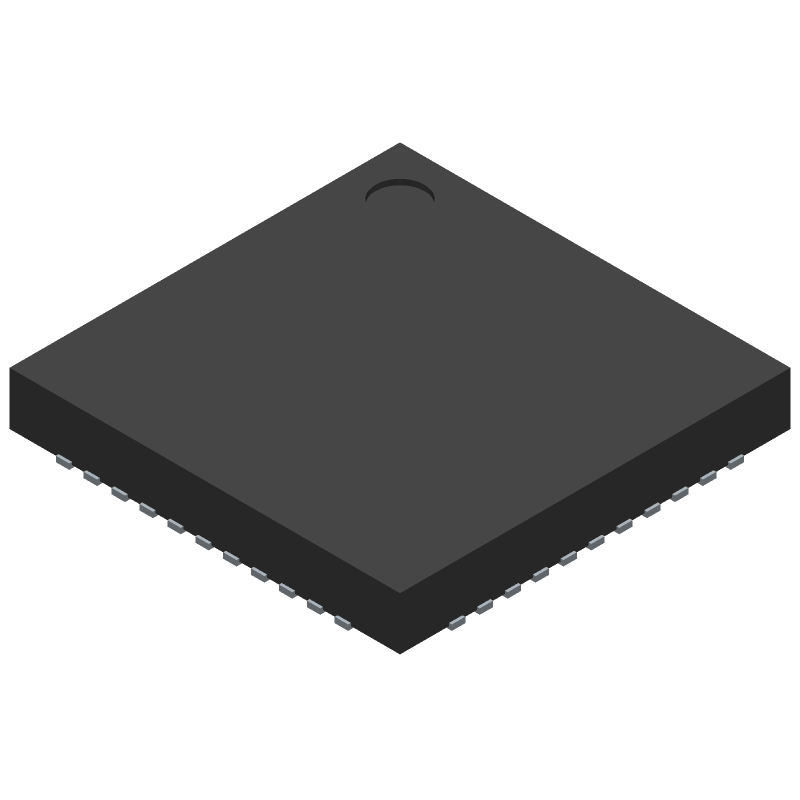

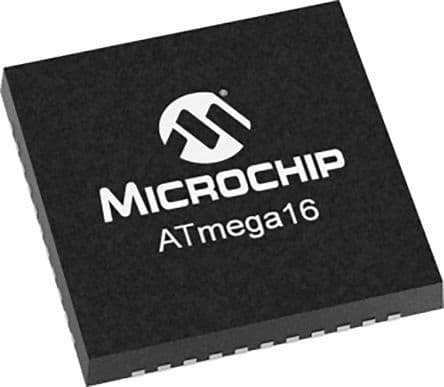

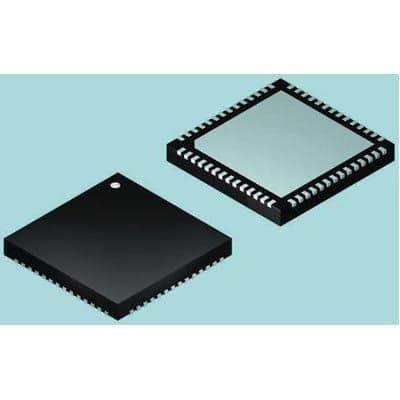

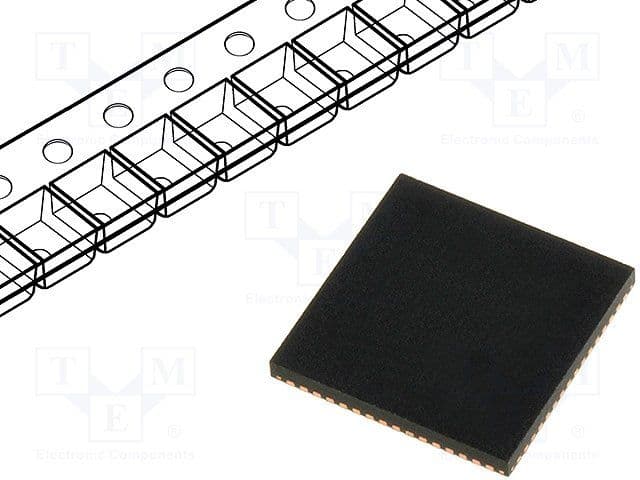

Product Images
