8-bit AVR microcontroller featuring 16KB FLASH memory and 1KB RAM. Operates at up to 16MHz with an 8-bit data bus. Includes SPI, UART, USART, and CAN interfaces, along with 10 PWM channels and 2 timers/counters. Designed for surface mount with a 32-pin TQFP package, supporting a supply voltage range of 2.7V to 5.5V and operating temperatures from -40°C to 85°C.
Frequency16MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA16M1-AU technical specifications.
General
Package/Case
A
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
1.05mm
Interface
SPI, UART, USART, CAN
Lead Free
Lead Free
Length
7.1mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of PWM Channels
10
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
AVR® ATmega
Watchdog Timer
Yes
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA16M1-AU Datasheet
Download the complete datasheet for Microchip ATMEGA16M1-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

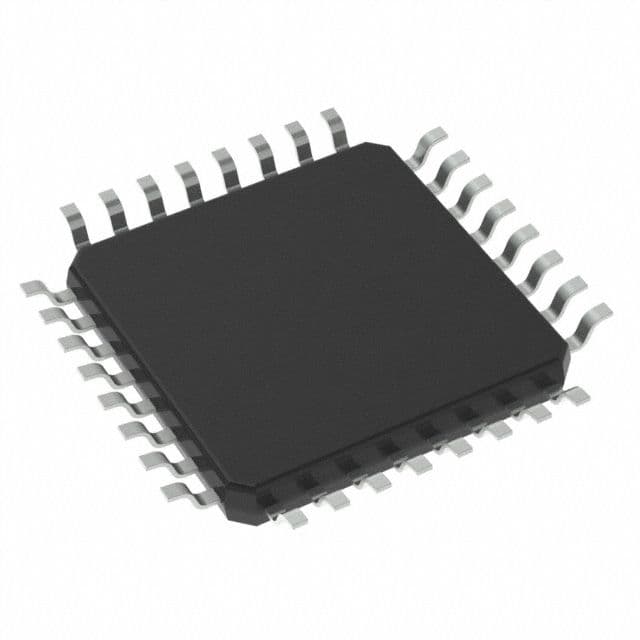

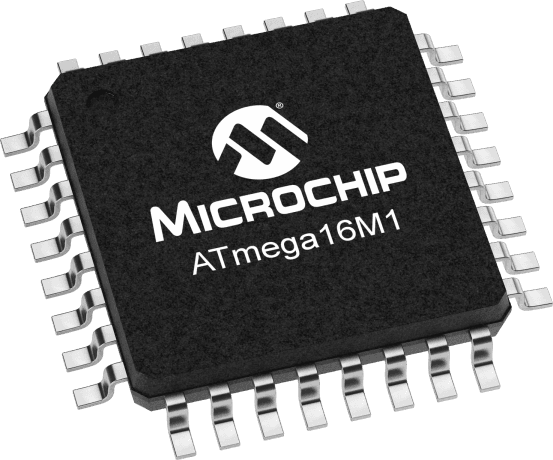

Product Images
