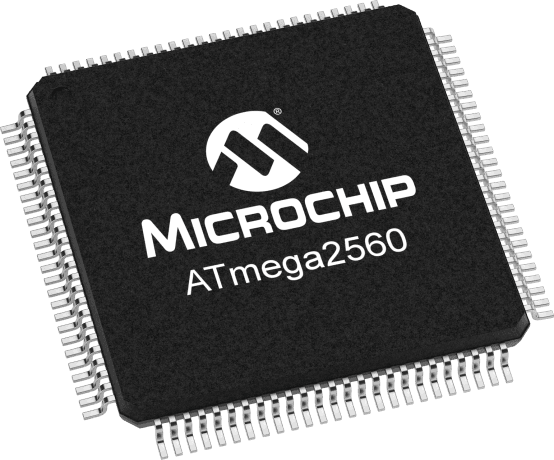

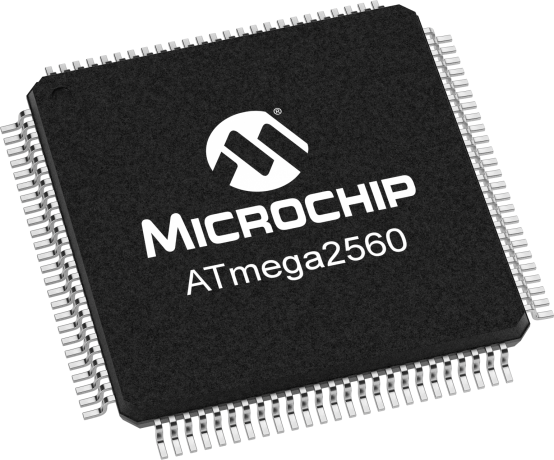

8-bit AVR microcontroller featuring 256KB Flash memory and 7KB RAM. Operates at 8MHz with an internal oscillator. Supports I2C, SPI, UART, USART, and EBI/EMI interfaces. Offers 20 I/Os and includes peripherals like POR, WDT, and PWM. Operates within a 1.8V to 5.5V supply range and a temperature range of -40°C to 85°C. Packaged in a 100-pin TQFP.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATMEGA2560V-8AUR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 8MHz |
| Interface | I2C, SPI, UART, USART, EBI/EMI |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 7KB |
| Memory Type | OTP, , FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 20 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | POR, WDT, Temp Sensor, Brown-out Detect/Reset, PWM |
| RoHS Compliant | Yes |
| Series | PIC® 14 |
| RoHS | Compliant |
Download the complete datasheet for Microchip ATMEGA2560V-8AUR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Microchip ATMEGA2560V-8AUR
Qualification report for palladium-coated copper with gold flash (CuPdAu) bond wire in Microchip ATXMEGA and ATMEGA devices in 64L and 100L TQFP packages at the MMT site.
