8-bit AVR microcontroller featuring 32KB Flash memory and 2KB RAM. Operates at up to 16MHz with an 8-bit address and data bus. Offers 32 I/O pins, 8 ADC channels, 4 PWM channels, and 3 timers. Includes SPI, USART, and 2-Wire interfaces, along with POR, WDT, and PWM peripherals. Packaged in a 40-pin PDIP for through-hole mounting, with a temperature range of -40°C to 85°C and a supply voltage of 4.5V to 5.5V.
Frequency16MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATMEGA32-16PU technical specifications.
General
Access Time
16us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
4.445mm
Interface
SPI, USART, 2-Wire
Lead Free
Lead Free
Length
52.58mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1024B
Memory Type
FLASH, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Orientation
Straight
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
13.97mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA32-16PU Datasheet
Download the complete datasheet for Microchip ATMEGA32-16PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

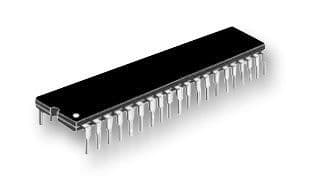

Product Images
