8-bit AVR microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at up to 20MHz with an 8-bit data bus width. Offers 32 I/O pins, 8 ADC channels, 6 PWM channels, and 3 timers/counters. Supports I2C, SPI, and UART/USART interfaces. Packaged in a 40-pin DIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATMEGA324A-PU technical specifications.
General
Package/Case
DIP
Core Architecture
AVR
Data Bus Width
8b
Frequency
20MHz
Height
4.445mm
Interface
I2C, SPI, UART, USART
Length
52.58mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Width
13.97mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA324A-PU Datasheet
Download the complete datasheet for Microchip ATMEGA324A-PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

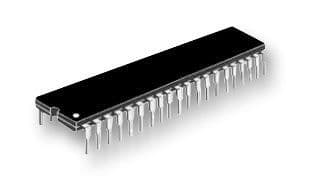

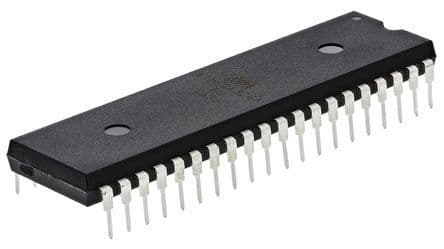

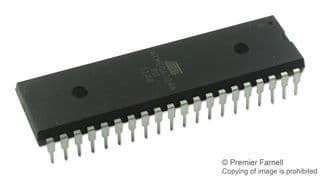

Product Images
