8-bit AVR microcontroller featuring 32KB Flash memory and 2KB RAM. Operates at up to 20MHz with 32 I/O pins. Includes I2C, SPI, and UART interfaces, 8 ADC channels, and 6 PWM channels. Packaged in a 44-pin VQFN for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA324PA-MU technical specifications.
General
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Density
32KB
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART, 2-Wire
Lead Free
Lead Free
Length
7.1mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Termination
SMD/SMT
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA324PA-MU Datasheet
Download the complete datasheet for Microchip ATMEGA324PA-MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

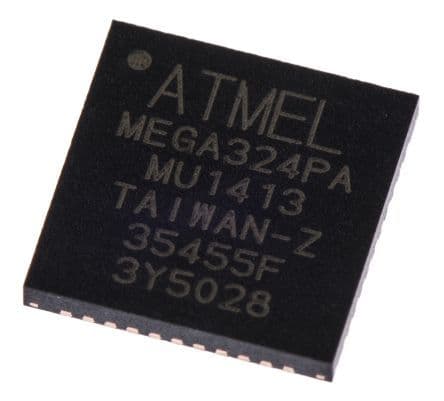

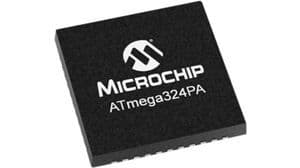

Product Images
