8-bit AVR microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at up to 8MHz with an 8us access time. Offers 69 I/Os, including SPI, UART, and I2C interfaces, alongside 8 ADC channels and 4 PWM channels. This surface mount component supports a voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency8MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA3250V-8AU technical specifications.
General
Access Time
8us
Package/Case
A
Core Architecture
AVR
Data Bus Width
8b
Density
32KB
Frequency
8MHz
Height
1.05mm
Interface
SPI, UART, USART
Lead Free
Lead Free
Length
14.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
69
Number of I2C Channels
1
Number of Inputs
68
Number of Outputs
68
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Termination
SMD/SMT
Width
14.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA3250V-8AU Datasheet
Download the complete datasheet for Microchip ATMEGA3250V-8AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

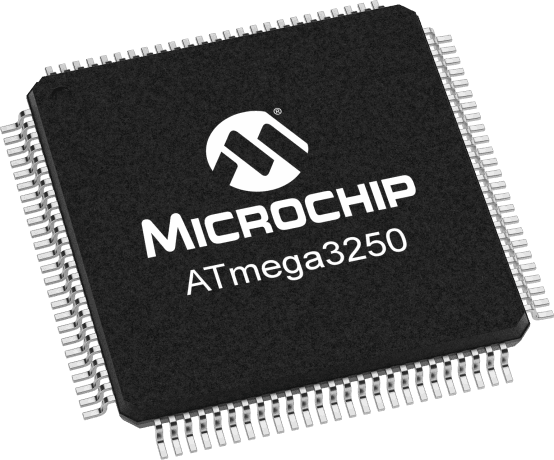

Product Images
