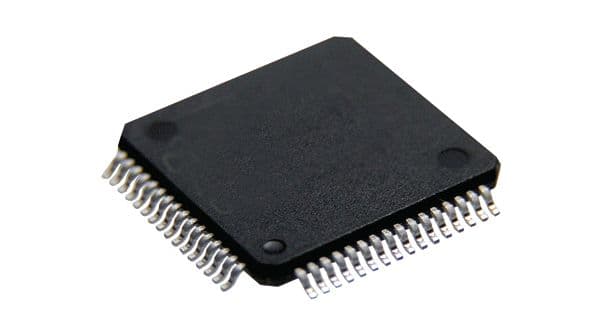

8-bit AVR microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at up to 8MHz with an 8-bit address bus. Offers SPI, UART, and USART interfaces, along with 8 ADC channels and 4 PWM channels. Includes 3 timers/counters and integrated peripherals like Brown-out Detect, POR, PWM, WDT, and LCD support. Packaged in a 64-TQFP surface mount tray, this RoHS compliant component operates from 1.8V to 5.5V and a temperature range of -40°C to 85°C.
Frequency8MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA329V-8AU technical specifications.
General
Access Time
8us
Address Bus Width
8b
Package/Case
A
Core Architecture
AVR
Frequency
8MHz
Interface
SPI, UART, USART
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
54
Number of PWM Channels
4
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA329V-8AU Datasheet
Download the complete datasheet for Microchip ATMEGA329V-8AU to view detailed technical specifications.
