The ATMEGA32M1-15MZ is a 32KB FLASH AVR microcontroller with an 8MHz frequency and a supply voltage range of 2.7V to 5.5V. It features a VQFN package and is compliant with AEC-Q100. The device has 32 programmable I/Os, 2 timers/counters, and a RAM size of 2KB. It also includes peripherals such as brown-out detect/reset, power-on reset, pulse-width modulation, and a temperature sensor. The microcontroller operates within a temperature range of -40°C to 125°C and is available in a cut tape packaging.
Frequency8MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA32M1-15MZ technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 8MHz |
| Interface | SPI, UART, USART, CAN, LIN |
| Max Frequency | 8MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| RAM Size | 2KB |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, AVR® ATmega |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA32M1-15MZ Datasheet
Download the complete datasheet for Microchip ATMEGA32M1-15MZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

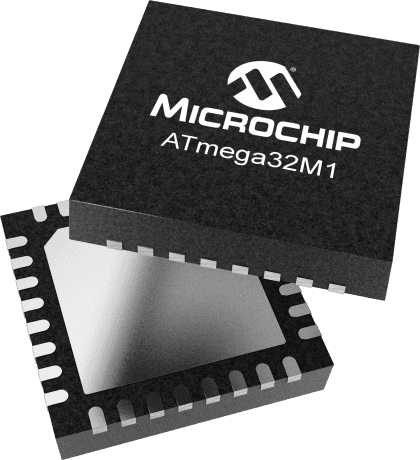

Product Images
