Technical Specifications
Microchip ATMEGA644-20MU technical specifications.
General
| Access Time | 20us |
| Package/Case | VQFN |
| Frequency | 20MHz |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of I/Os | 32 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA644-20MU Datasheet
Download the complete datasheet for Microchip ATMEGA644-20MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

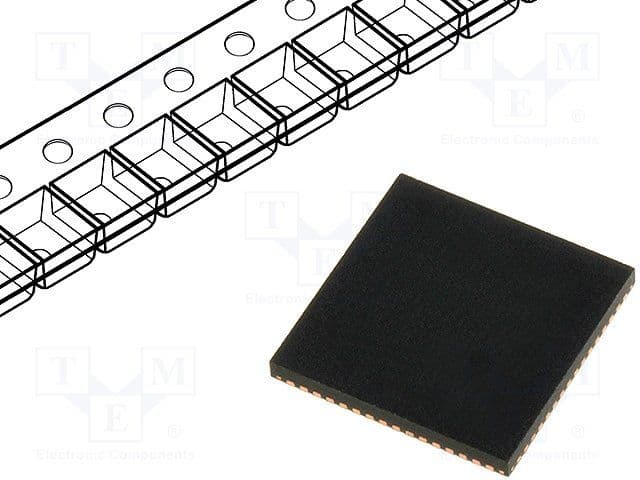

Product Images
