8-bit AVR microcontroller featuring 64KB FLASH memory and 4KB RAM. Operates at up to 20MHz with an 8-bit data bus. Offers 54 I/O pins, SPI, UART, USART, and I2C interfaces, along with 8 ADC channels and 4 PWM channels. Supports a wide operating voltage range of 1.8V to 5.5V and operates from -40°C to 85°C. Surface mountable in a 64-TQFP package.
Frequency16MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA645P-AU technical specifications.
General
Package/Case
A
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
1.05mm
Interface
SPI, UART, USART
Length
14.1mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
54
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Width
14.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA645P-AU Datasheet
Download the complete datasheet for Microchip ATMEGA645P-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

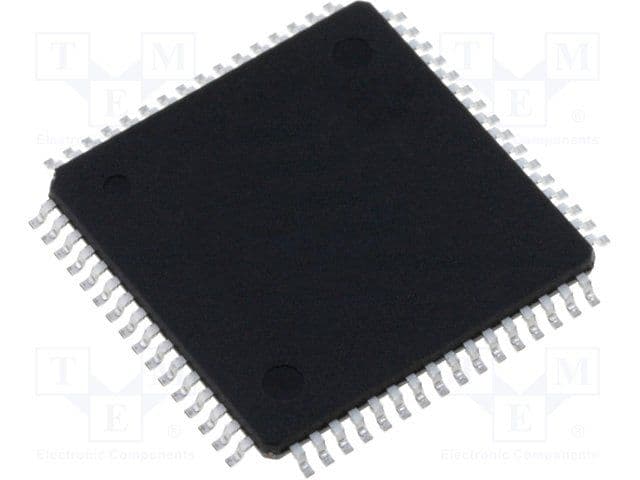

Product Images
