8-bit AVR microcontroller featuring 64KB FLASH memory and 4KB RAM. Operates at up to 16MHz with an internal oscillator. Supports SPI, UART, and USART interfaces, offering 27 I/Os. Designed for a wide operating temperature range of -40°C to 85°C and supply voltages from 2.7V to 5.5V. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and a Temperature Sensor. RoHS compliant.
Frequency16MHz
PackageA
Quick Jump:
Technical Specifications
Microchip ATMEGA64M1-AU technical specifications.
General
| Package/Case | A |
| Core Architecture | AVR |
| Frequency | 16MHz |
| Interface | SPI, UART, USART |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.7V |
| Number of I/Os | 27 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA64M1-AU Datasheet
Download the complete datasheet for Microchip ATMEGA64M1-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

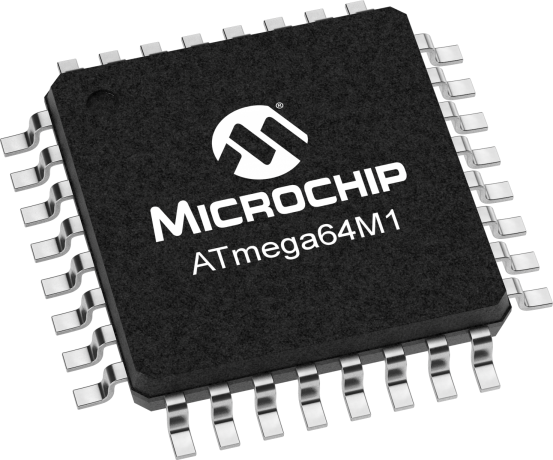

Product Images
