8-bit microcontroller featuring an AVR core architecture, operating at up to 16MHz. This surface-mount integrated circuit offers 8KB of FLASH memory and 1KB of SRAM, with 23 programmable I/O pins. Integrated peripherals include SPI, USART, 2-Wire, I2C, and UART interfaces, alongside Brown-out Detect/Reset, POR, PWM, and WDT. Designed for a supply voltage range of 4.5V to 5.5V, it operates between -40°C and 85°C.
Frequency16MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8-16MI technical specifications.
General
Access Time
16us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Interface
SPI, USART, 2-Wire, I2C, UART
Lead Free
Contains Lead
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/Os
23
Number of Programmable I/O
23
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1KB
RoHS Compliant
No
Series
AVR® ATmega
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATMEGA8-16MI Datasheet
Download the complete datasheet for Microchip ATMEGA8-16MI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

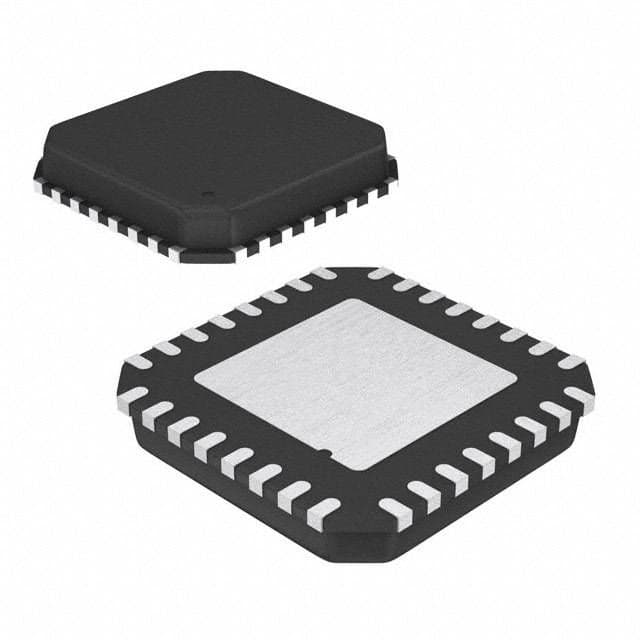

Product Images
