8-bit AVR microcontroller with 8KB FLASH memory and 512B RAM. Features an 8-bit data bus, 16MHz clock frequency, and 35 programmable I/O pins. Supports SPI, USART, UART, and EBI/EMI interfaces. Operates from 4.5V to 5.5V supply voltage, with an industrial temperature range of -40°C to 85°C. Includes 2 timers/counters and internal oscillator. Packaged in a 40-pin PDIP for through-hole mounting.
Frequency16MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATMEGA8515-16PI technical specifications.
General
Access Time
16us
Package/Case
PDIP
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Interface
SPI, USART, UART, EBI/EMI
Lead Free
Contains Lead
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of I/Os
35
Number of Programmable I/O
35
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
No
Series
AVR® ATmega
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATMEGA8515-16PI Datasheet
Download the complete datasheet for Microchip ATMEGA8515-16PI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

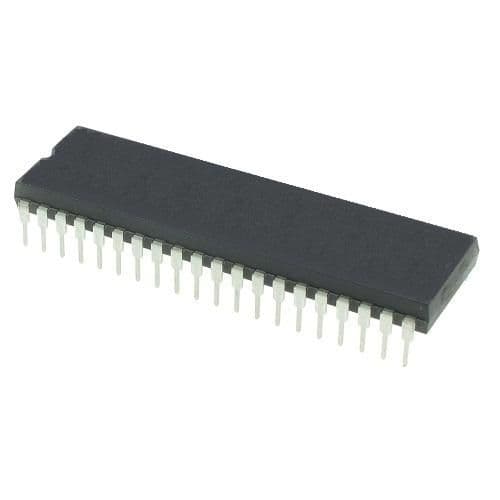

Product Images
