8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 8MHz with an 8us access time. Offers 35 I/Os, 3 PWM channels, and 2 timers. Supports SPI, UART, USART, and EBI/EMI interfaces. Packaged in a 44-TQFP surface mount with an operating temperature range of -40°C to 85°C.
Frequency8MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8515L-8AU technical specifications.
General
Access Time
8us
Package/Case
A
Core Architecture
AVR
Data Bus Width
8b
Density
8KB
Frequency
8MHz
Height
1.05mm
Interface
SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
10.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
35
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Watchdog Timer
Yes
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA8515L-8AU Datasheet
Download the complete datasheet for Microchip ATMEGA8515L-8AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

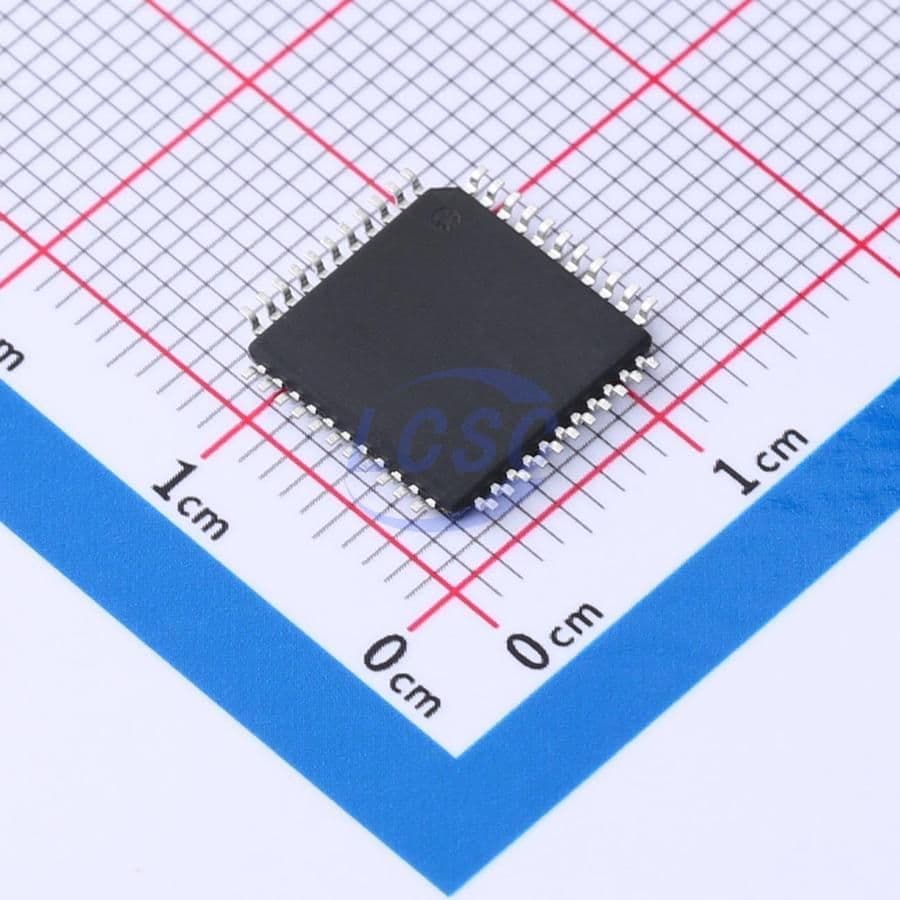

Product Images
