8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at a maximum frequency of 16MHz with an 8-bit data bus. Offers 32 programmable I/O pins, 8 ADC channels, and multiple interfaces including SPI, USART, and I2C. Includes 3 timers/counters and peripherals like Brown-out Detect/Reset and WDT. Packaged in a 44-TQFP surface mount case, suitable for operation between -40°C and 85°C.
Frequency16MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8535-16AI technical specifications.
General
| Access Time | 16us |
| Package/Case | A |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Height | 1.05mm |
| Interface | SPI, USART, 2-Wire, I2C, UART |
| Lead Free | Contains Lead |
| Length | 10.1mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of I/Os | 32 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 32 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 512B |
| RoHS Compliant | No |
| Series | AVR® ATmega |
| Width | 10.1mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip ATMEGA8535-16AI Datasheet
Download the complete datasheet for Microchip ATMEGA8535-16AI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

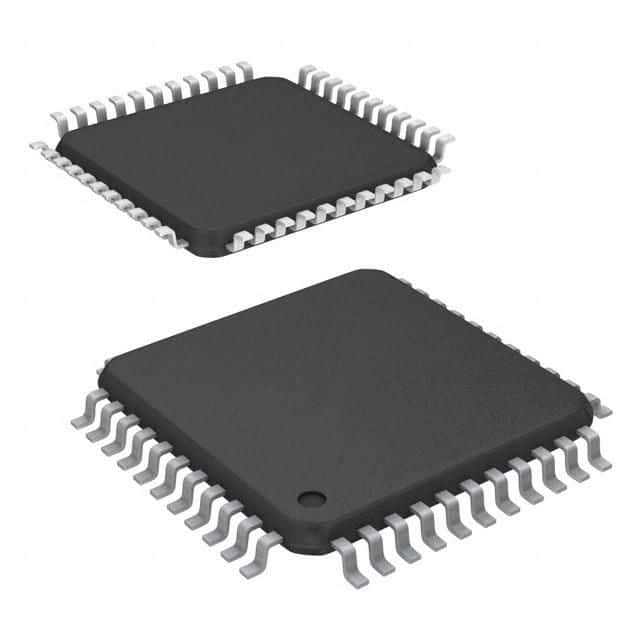

Product Images
