8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 8MHz with an 8-bit address and data bus. Offers I2C, SPI, and USART interfaces, 8 ADC channels, and 4 PWM channels. Includes 3 timers/counters, watchdog timer, and brown-out detection. Packaged in a 44-TQFP surface mount case, operating from 2.7V to 5.5V and rated for -40°C to 85°C.
Frequency8MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8535L-8AU technical specifications.
General
Access Time
8us
Address Bus Width
8b
Package/Case
A
Core Architecture
AVR
Data Bus Width
8b
Density
8KB
Frequency
8MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
0
Number of USB Channels
0
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Watchdog Timer
Yes
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA8535L-8AU Datasheet
Download the complete datasheet for Microchip ATMEGA8535L-8AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

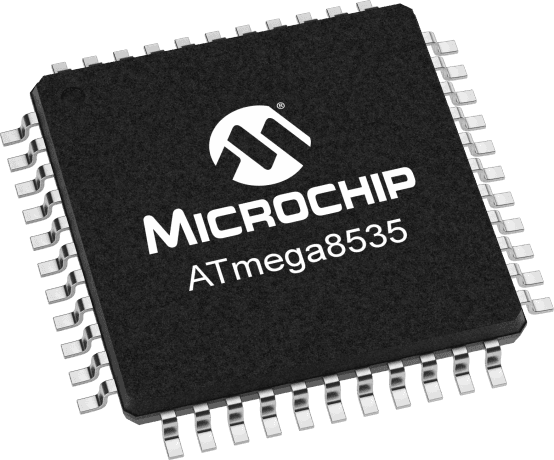

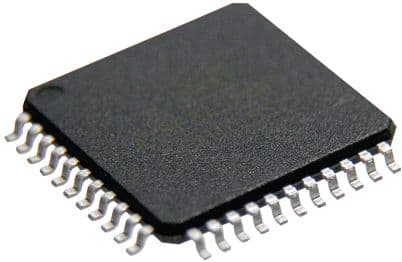

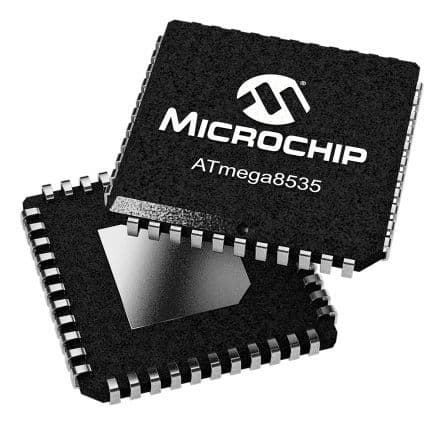

Product Images
