8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 8MHz with an 8-bit data bus width. Offers 32 I/Os, 8 ADC channels, and multiple communication interfaces including I2C, SPI, and UART. Includes 3 timers/counters and 4 PWM channels. Packaged in a 44-pin VQFN for surface mounting, with a wide operating temperature range of -40°C to 85°C and supply voltage from 2.7V to 5.5V.
Frequency8MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8535L-8MU technical specifications.
General
Access Time
8us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
8MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
AVR® ATmega
Watchdog Timer
Yes
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA8535L-8MU Datasheet
Download the complete datasheet for Microchip ATMEGA8535L-8MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

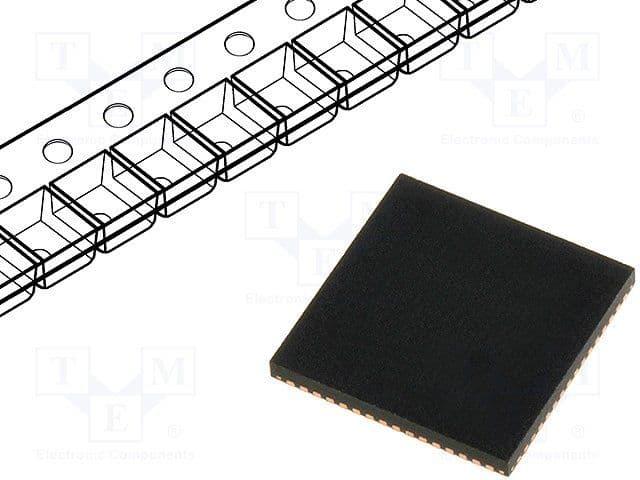

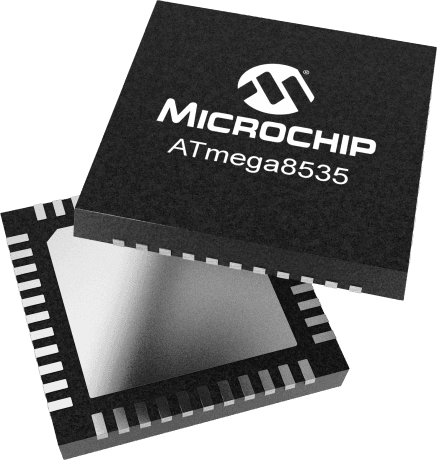

Product Images
