8-bit AVR microcontroller with 8KB FLASH memory and 512B RAM. Features an 8MHz internal oscillator, 32 programmable I/Os, and SPI, USART, and I2C interfaces. Operates from 2.7V to 5.5V supply voltage with an access time of 8µs. Includes Brown-out Detect/Reset, POR, PWM, and WDT peripherals. Packaged in a 40-pin PDIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency8MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATMEGA8535L-8PI technical specifications.
General
Access Time
8us
Package/Case
PDIP
Core Architecture
AVR
Data Bus Width
8b
Frequency
8MHz
Interface
SPI, USART, 2-Wire, I2C, UART
Lead Free
Contains Lead
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
No
Series
AVR® ATmega
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATMEGA8535L-8PI Datasheet
Download the complete datasheet for Microchip ATMEGA8535L-8PI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

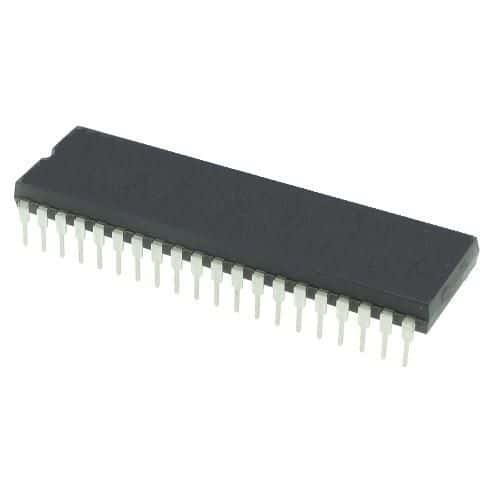

Product Images
