Technical Specifications
Microchip ATMEGA88PA-MMNR technical specifications.
General
| Package/Case | PDIP |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Interface | I2C, SPI, UART, USART |
| Max Frequency | 20MHz |
| Max Operating Temperature | 105°C |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Number of I/Os | 23 |
| Number of Programmable I/O | 23 |
| Operating Supply Voltage | 5.5V |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA88PA-MMNR Datasheet
Download the complete datasheet for Microchip ATMEGA88PA-MMNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

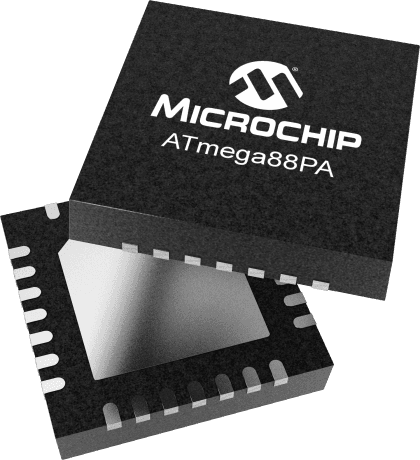

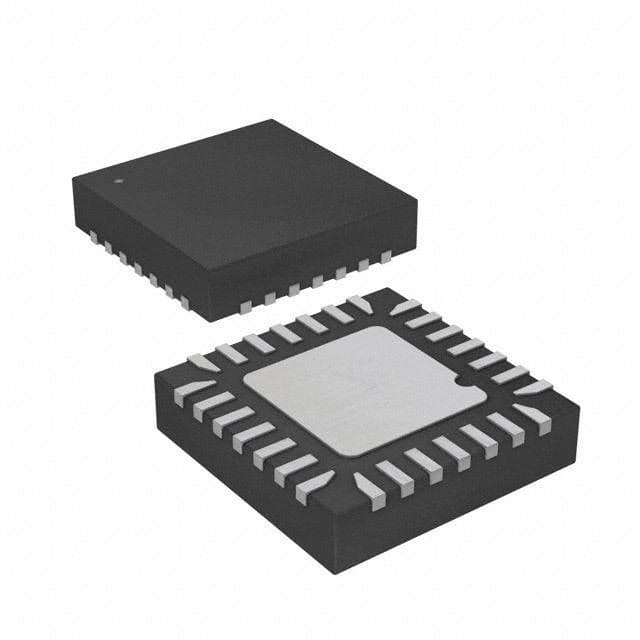

Product Images
