8-bit AVR microcontroller featuring 8KB Flash memory and 1KB RAM. Operates at up to 10MHz with an access time of 10µs. Supports I2C, SPI, and UART/USART interfaces, with 23 I/O pins and 8 ADC channels. Includes 2 timers/counters, 6 PWM channels, and integrated peripherals like Brown-out Detect/Reset, POR, and WDT. This lead-free, RoHS-compliant component is housed in a 32-TQFP surface-mount package and operates within a 2.7V to 5.5V supply voltage range.
Frequency10MHz
PackageA
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA88V-10AU technical specifications.
General
| Access Time | 10us |
| Package/Case | A |
| Core Architecture | AVR |
| Density | 8KB |
| Frequency | 10MHz |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, , EEPROM |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of Bits | 8 |
| Number of I/Os | 23 |
| Number of PWM Channels | 6 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
| Voltage | 5V |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA88V-10AU Datasheet
Download the complete datasheet for Microchip ATMEGA88V-10AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

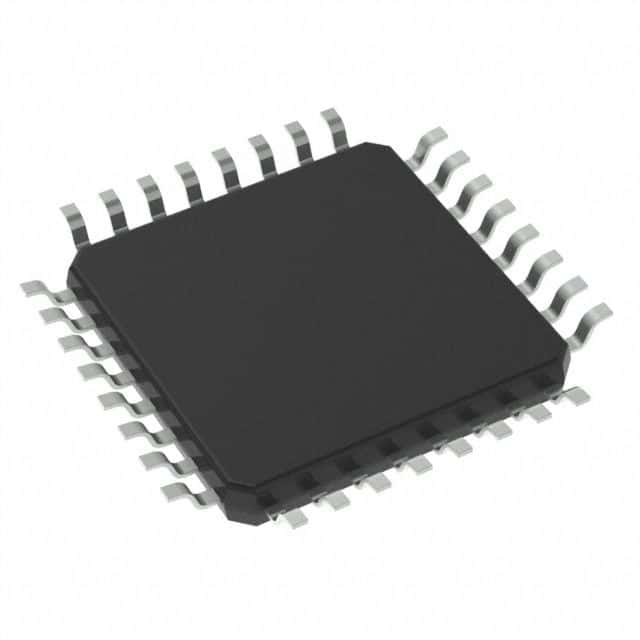

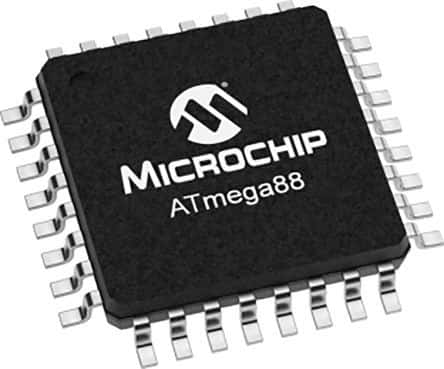

Product Images
