8-bit AVR microcontroller featuring 8KB FLASH memory and a 16MHz internal oscillator. This surface mount IC supports SPI, USB, UART, USART, and EBI/EMI interfaces, with 22 I/Os. Operating from 2.7V to 5.5V, it includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Designed for a temperature range of -40°C to 85°C, this RoHS compliant component is packaged in a 32-pin TQFP.
Frequency16MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8U2-AUR technical specifications.
General
Package/Case
TQFP
Core Architecture
AVR
Frequency
16MHz
Interface
SPI, USB, UART, USART, EBI/EMI
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
22
Oscillator Type
Internal
Packaging
Cut Tape
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RoHS Compliant
Yes
Series
AVR® ATmega
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA8U2-AUR Datasheet
Download the complete datasheet for Microchip ATMEGA8U2-AUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

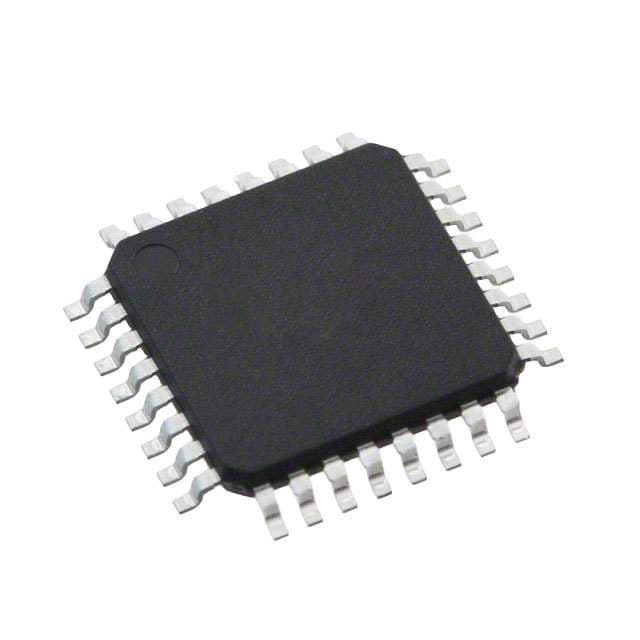

Product Images
