32-bit ARM Cortex-M4 microcontroller featuring 128KB Flash memory and 32KB RAM. Operates at up to 48MHz with integrated I2C, SPI, USB, and UART interfaces. Includes peripherals such as POR, PWM, WDT, DMA, and LCD support. Packaged in a 48-pin QFN EP, this surface-mount component offers 3 ADC channels and operates from 1.68V to 3.6V within a -40°C to 85°C temperature range.
Frequency48MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATSAM4LC2AA-MU technical specifications.
General
Package/Case
QFN EP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
0.82mm
Interface
I2C, SPI, USB, UART
Lead Free
Lead Free
Length
7mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
1.68V
Mount
Surface Mount
Number of ADC Channels
3
Number of I2C Channels
2
Number of SPI Channels
1
Number of Timers/Counters
1
Number of UART Channels
3
Number of USB Channels
1
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATSAM4LC2AA-MU Datasheet
Download the complete datasheet for Microchip ATSAM4LC2AA-MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

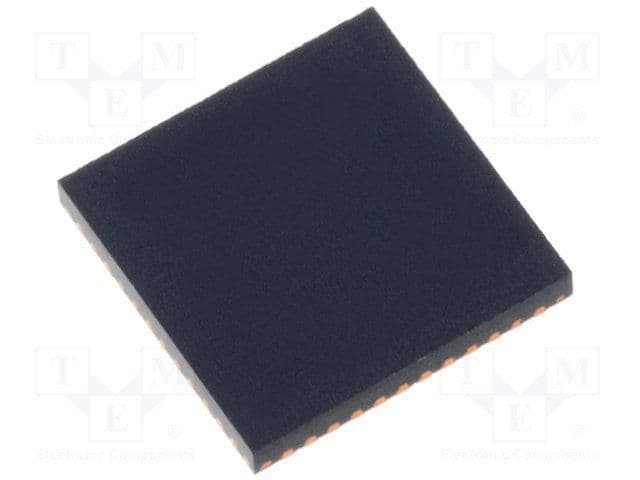

Product Images
