Technical Specifications
Microchip ATSAM4LS2AA-MU technical specifications.
General
Package/Case
QFN
Core Architecture
ARM
Frequency
48MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, LIN
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
1.68V
Mount
Surface Mount
Number of I/Os
32
Number of Timers/Counters
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SAM4L
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ATSAM4LS2AA-MU Datasheet
Download the complete datasheet for Microchip ATSAM4LS2AA-MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

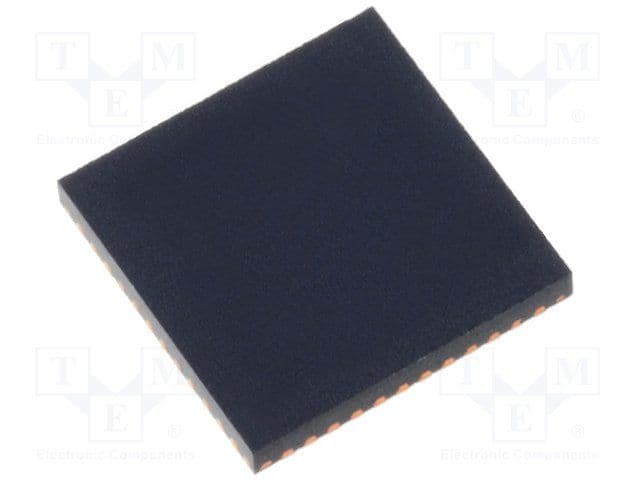

Product Images
