Frequency50MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATSAM4LS2CA-AUR technical specifications.
General
Package/Case
TQFP
Core Architecture
ARM
Frequency
50MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, LIN
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.68V
Mount
Surface Mount
Number of I/Os
80
Number of Timers/Counters
7
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
SAM4L
Compliance
RoHS
Compliant
Datasheet
Microchip ATSAM4LS2CA-AUR Datasheet
Download the complete datasheet for Microchip ATSAM4LS2CA-AUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

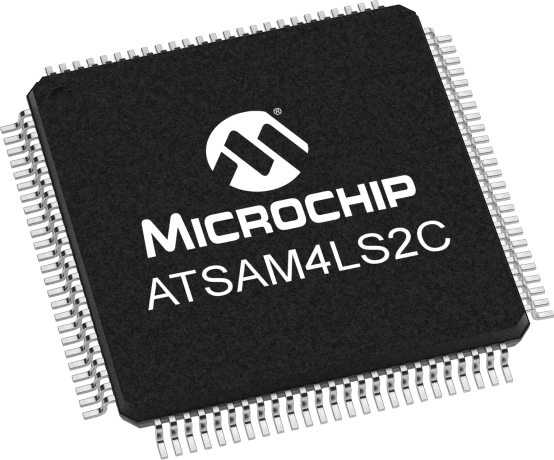

Product Images
