32-bit ARM Cortex-M4 microcontroller featuring 128KB FLASH memory and 4KB RAM. Operates at up to 48MHz with a 1.68V to 3.6V supply voltage. Offers 80 programmable I/Os and interfaces including I2C, SPI, USB, UART, and USART. Includes peripherals like DMA, PWM, and a watchdog timer. Packaged in VFBGA for surface mounting.
Frequency48MHz
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATSAM4LS2CA-CFU technical specifications.
General
Package/Case
VFBGA
Contact Plating
Copper, Tin, Silver
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, LIN
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.68V
Moisture Sensitivity Level
3
Mount
Surface Mount
Number of I/Os
80
Number of Programmable I/O
80
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
4KB
RoHS Compliant
Yes
Series
SAM4L
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ATSAM4LS2CA-CFU Datasheet
Download the complete datasheet for Microchip ATSAM4LS2CA-CFU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

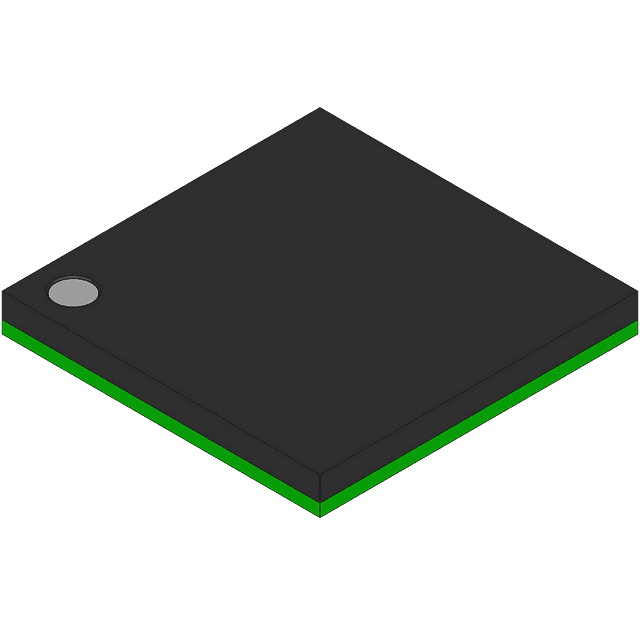

Product Images
