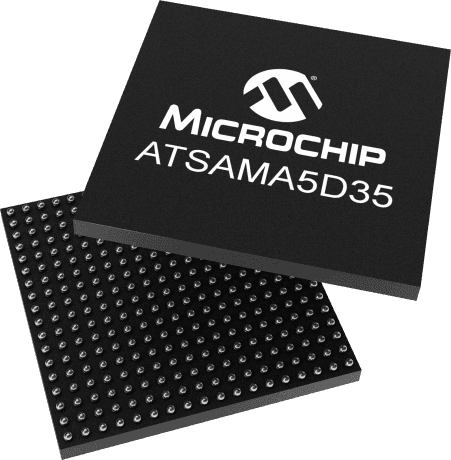

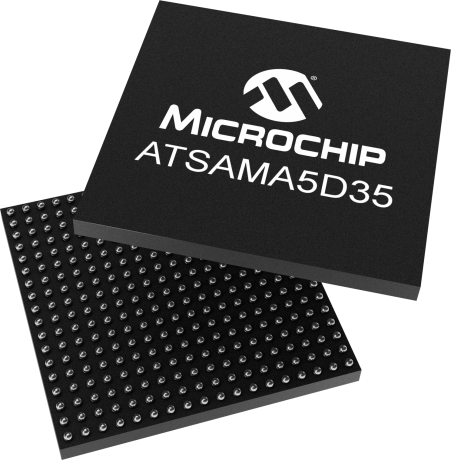

32-bit ARM microprocessor featuring a 536MHz core speed and 128KB RAM. Integrated 160KB ROM, 12 ADC channels, and 160 I/Os. Supports 2 Ethernet, 3 I2C, 4 PWM, 6 SPI, 7 UART, and 3 USB interfaces. Operates within a 1.08V to 1.32V supply voltage range, with a temperature range of -40°C to 85°C. Packaged in a 324LFBGA, this lead-free component includes POR, WDT, DMA, and PWM peripherals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATSAMA5D35A-CU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 536MHz |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 15.05mm |
| Max Frequency | 536MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 160KB |
| Memory Type | FLASH, , ROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.32V |
| Min Supply Voltage | 1.08V |
| Number of ADC Channels | 12 |
| Number of Cores | 1 |
| Number of Ethernet Channels | 2 |
| Number of I/Os | 160 |
| Number of I2C Channels | 3 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 6 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 7 |
| Number of USB Channels | 3 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA |
| RAM Size | 128KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SAMA5D3 |
| Watchdog Timer | Yes |
| Width | 15.05mm |
| RoHS | Compliant |
