8-bit AVR microcontroller featuring 1KB FLASH program memory and 64B RAM. Operates at up to 20MHz with an 8-bit data bus width and SPI interface. Offers 6 programmable I/Os, 2 timers/counters, and peripherals including Brown-out Detect/Reset, POR, PWM, and WDT. Designed for surface mounting in an 8-pin SOIC package, with an operating temperature range of -40°C to 85°C and supply voltage from 2.7V to 5.5V.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY13-20SSI technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
AVR
Data Bus Width
8b
Frequency
20MHz
Interface
SPI
Lead Free
Contains Lead
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
1KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
6
Number of Programmable I/O
6
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
100
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
64B
RoHS Compliant
No
Series
AVR® ATtiny
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATTINY13-20SSI Datasheet
Download the complete datasheet for Microchip ATTINY13-20SSI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

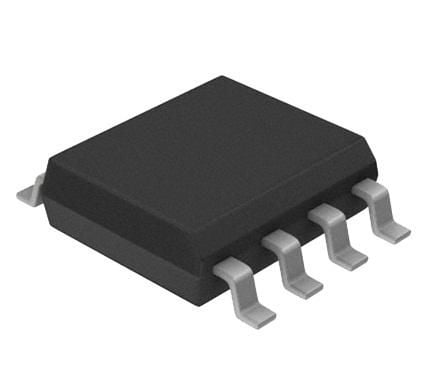

Product Images
