8-bit AVR microcontroller featuring 2KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus width. Offers SPI, UART, and USART interfaces, with 18 programmable I/Os, 4 PWM channels, and 2 timers. Supports surface mount installation in a QFN package, with an operating temperature range of -40°C to 85°C and a supply voltage from 2.7V to 5.5V. Includes Brown-out Detect/Reset, POR, and WDT peripherals.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY2313-20MU technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
20MHz
Height
0.75mm
Interface
SPI, UART, USART
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATtiny
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATTINY2313-20MU Datasheet
Download the complete datasheet for Microchip ATTINY2313-20MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

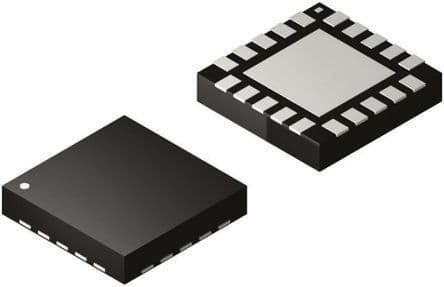

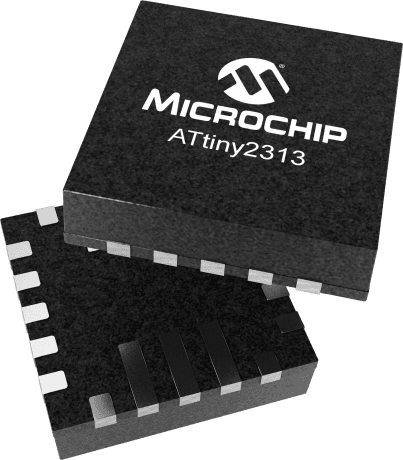

Product Images
