8-bit AVR microcontroller with 2KB FLASH memory and 128B RAM. Features an 8-bit address and data bus, operating at up to 16MHz. Includes 11 ADC channels, 16 I/Os, 1 I2C channel, 2 PWM channels, and 2 timers. Packaged in a 20-pin PDIP for through-hole mounting, with SPI interface support. Operates from 4.5V to 5.5V, with an operating temperature range of -40°C to 85°C. RoHS compliant.
Frequency16MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATTINY26-16PU technical specifications.
General
| Access Time | 16us |
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Height | 4.953mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 25.98mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of ADC Channels | 11 |
| Number of I/Os | 16 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 7.112mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY26-16PU Datasheet
Download the complete datasheet for Microchip ATTINY26-16PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

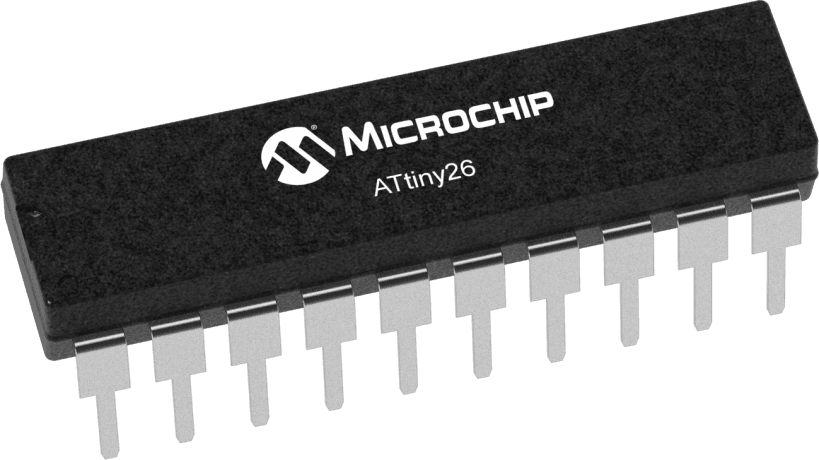

Product Images
