The AVR ATtiny 8-bit microcontroller features 2KB of FLASH memory, 16 I/Os, and an internal oscillator. It operates over a temperature range of -40°C to 85°C and is available in a VQFN-32 package. The device is RoHS compliant and suitable for surface mount applications. It also includes peripherals such as brown-out detect/reset, power-on reset, pulse-width modulation, and a watchdog timer.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY26L-8MUR technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | AVR |
| Max Operating Temperature | 85°C |
| Memory Size | 2KB |
| Memory Type | FLASH, , OTP |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RoHS Compliant | Yes |
| Series | AVR® ATtiny |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY26L-8MUR Datasheet
Download the complete datasheet for Microchip ATTINY26L-8MUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

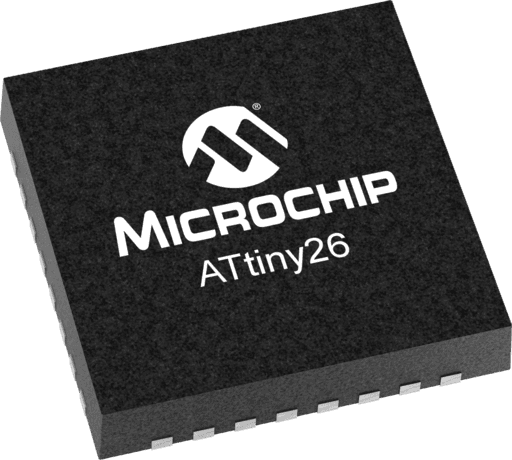

Product Images
