8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 12MHz with an 8-bit data bus and 28 I/O pins. Supports I2C and SPI interfaces, with 8 ADC channels and 2 PWM channels. Designed for surface mount applications with a 32-pin TQFP package, operating from 1.8V to 5.5V. Includes integrated peripherals like Brown-out Detect/Reset, POR, and a Watchdog Timer.
Frequency12MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY88-AU technical specifications.
General
| Package/Case | A |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 12MHz |
| Height | 1.05mm |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max Frequency | 12MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of I/Os | 28 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | AVR® ATtiny |
| Watchdog Timer | Yes |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY88-AU Datasheet
Download the complete datasheet for Microchip ATTINY88-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

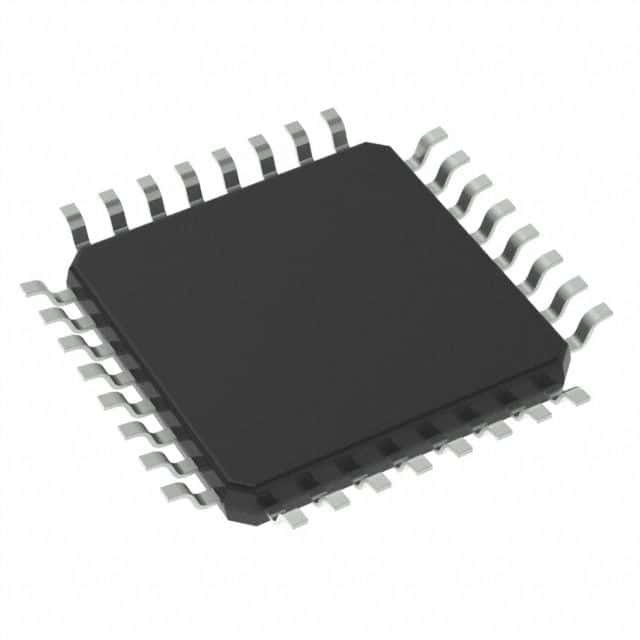

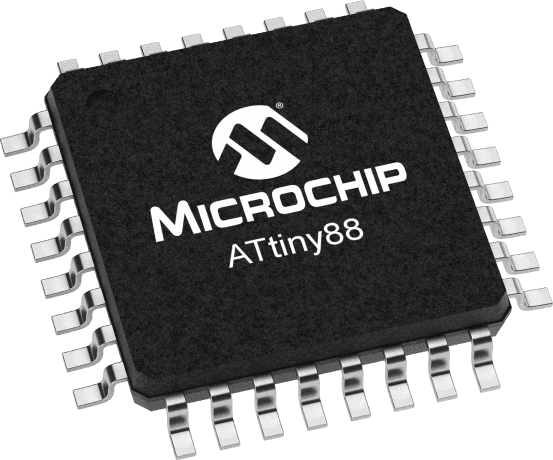

Product Images
