8-bit AVR microcontroller featuring 8KB FLASH memory and a 12MHz internal oscillator. This surface mount device offers 28 I/Os and supports I2C and SPI interfaces. Operating from 1.8V to 5.5V, it includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Designed for a temperature range of -40°C to 85°C, this RoHS compliant component is supplied in tape and reel packaging.
Frequency12MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY88-MUR technical specifications.
General
| Package/Case | SOIC |
| Core Architecture | AVR |
| Frequency | 12MHz |
| Interface | I2C, SPI |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of I/Os | 28 |
| Oscillator Type | Internal |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RoHS Compliant | Yes |
| Series | AVR® ATtiny |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY88-MUR Datasheet
Download the complete datasheet for Microchip ATTINY88-MUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

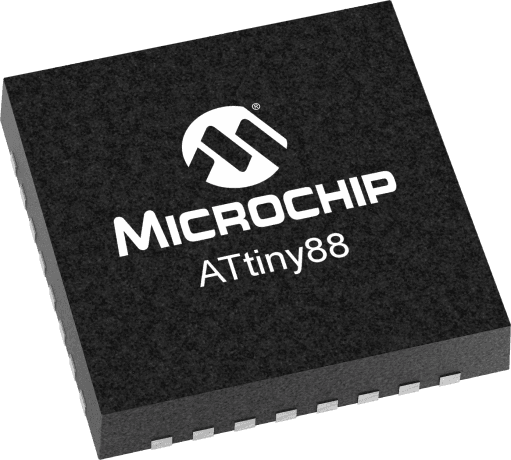

Product Images
