8-bit AVR XMEGA A1U microcontroller featuring 128KB FLASH memory and a 32MHz AVR core. Offers extensive connectivity with I2C, SPI, USB, IrDA, UART, USART, and EBI/EMI interfaces. Includes integrated peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Operates from 1.6V to 3.6V supply, with a temperature range of -40°C to 85°C. Surface mountable in a TFBGA package, this lead-free and RoHS compliant component is designed for demanding applications.
Frequency32MHz
PackageTFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA128A1U-CUR technical specifications.
General
Package/Case
TFBGA
Core Architecture
AVR
Frequency
32MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
1.6V
Mount
Surface Mount
Oscillator Type
Internal
Packaging
Cut Tape
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RoHS Compliant
Yes
Series
AVR® XMEGA® A1U
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA128A1U-CUR Datasheet
Download the complete datasheet for Microchip ATXMEGA128A1U-CUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

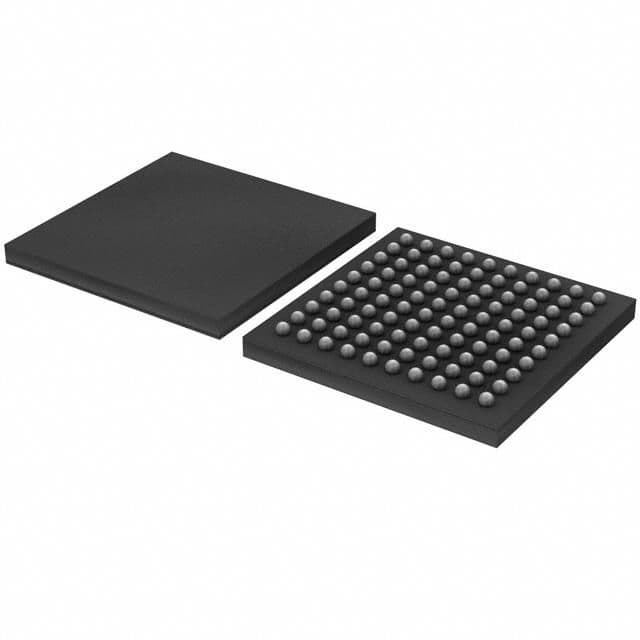

Product Images
