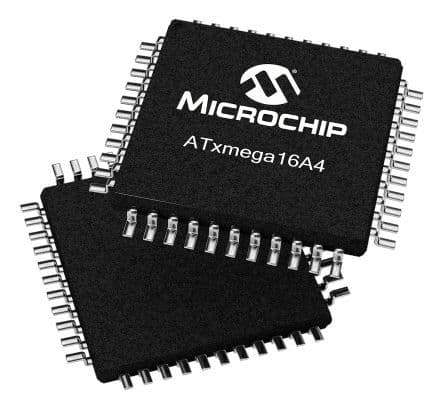

8-bit AVR microcontroller featuring 16KB FLASH memory and 2KB RAM. Operates at up to 32MHz with a 1.6V to 3.6V supply voltage. Offers 34 I/Os, 12 ADC channels, 16 PWM channels, and multiple communication interfaces including I2C, SPI, UART, and USART. This surface mount device is RoHS compliant and operates within a -40°C to 85°C temperature range.
Frequency32MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA16A4-AU technical specifications.
General
Package/Case
A
Core Architecture
AVR
Density
16KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
34
Number of I2C Channels
2
Number of PWM Channels
16
Number of SPI Channels
2
Number of Timers/Counters
5
Oscillator Type
Internal
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® XMEGA® A4
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA16A4-AU Datasheet
Download the complete datasheet for Microchip ATXMEGA16A4-AU to view detailed technical specifications.
