AVR XMEGA D4 series microcontroller featuring a 16-bit AVR core architecture, operating at up to 32MHz. This surface mount device offers 16KB of FLASH program memory and 2KB of RAM, with 34 I/O pins available. Integrated peripherals include 12 ADC channels, 8 PWM channels, 4 timers/counters, and support for I2C, SPI, IrDA, and UART/USART interfaces. Designed for a wide operating temperature range of -40°C to 85°C, with supply voltage from 1.6V to 3.6V.
Frequency32MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA16D4-MH technical specifications.
General
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
16b
Data Rate
115.2Kbps
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Length
7.1mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
34
Number of PWM Channels
8
Number of Timers/Counters
4
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® XMEGA® D4
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA16D4-MH Datasheet
Download the complete datasheet for Microchip ATXMEGA16D4-MH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

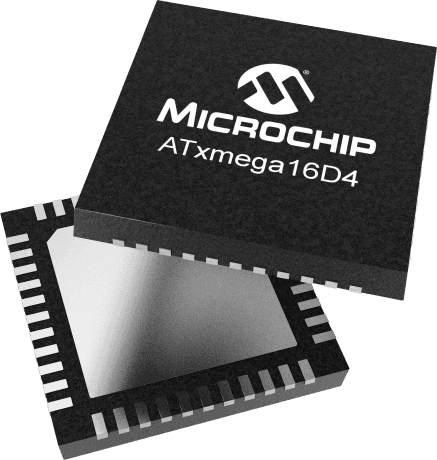

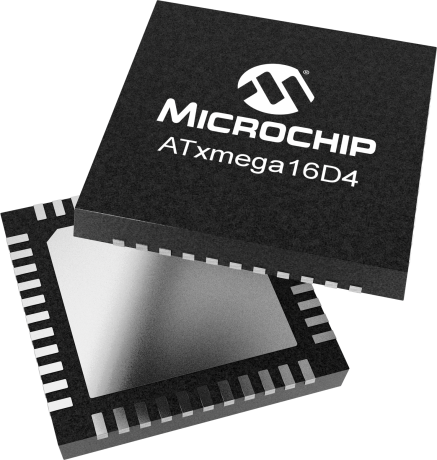

Product Images
