32KB FLASH Microcontroller (MCU) with AVR core architecture, operating at up to 32MHz. Features 4KB RAM, 34 I/Os, 12 ADC channels, and 16 PWM channels. Supports I2C (2 channels), SPI (2 channels), IrDA, UART, and USART interfaces. Internal oscillator, surface mount package, and a wide operating temperature range of -40°C to 85°C. Includes peripherals like Brown-out Detect/Reset, POR, WDT, and DMA.
Frequency32MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA32A4-AU technical specifications.
General
Package/Case
A
Core Architecture
AVR
Density
32KB
Frequency
32MHz
Height
1mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
34
Number of I2C Channels
2
Number of PWM Channels
16
Number of SPI Channels
2
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® XMEGA® A4
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA32A4-AU Datasheet
Download the complete datasheet for Microchip ATXMEGA32A4-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

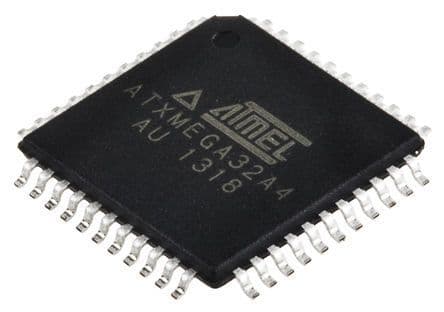

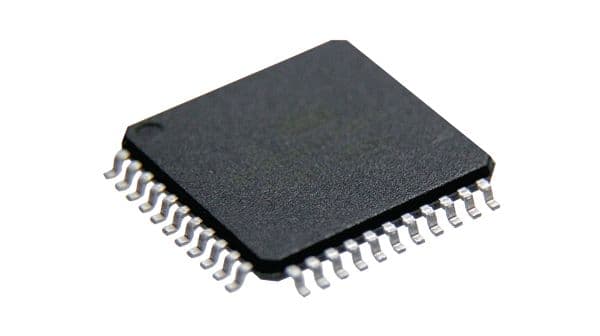

Product Images
