8-bit AVR microcontroller featuring a 32MHz clock speed and 32KB FLASH memory. This MCU offers 4KB RAM, 26 programmable I/O pins, and multiple communication interfaces including I2C, SPI, UART, and USART. It includes 3 PWM channels, 3 timers/counters, and 16 ADC channels with 1 A/D converter. Designed for surface mounting in a TQFP package, it operates from 1.6V to 3.6V and has an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA32E5-AUR technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
8b
Frequency
32MHz
Height
1.2mm
Interface
I2C, SPI, 2-Wire, IrDA, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of I/Os
26
Number of I2C Channels
1
Number of Programmable I/O
26
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
2000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
4KB
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA32E5-AUR Datasheet
Download the complete datasheet for Microchip ATXMEGA32E5-AUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

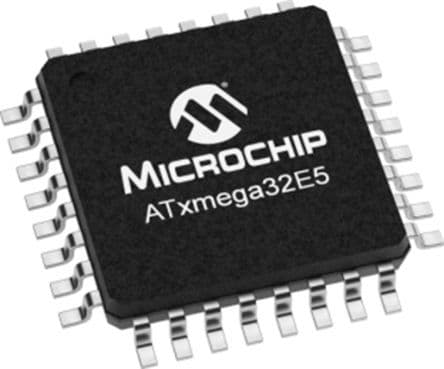

Product Images
