8-bit AVR microcontroller featuring 64KB FLASH memory and 4KB RAM. Operates at up to 32MHz with an 8-bit data bus width. Offers 34 programmable I/O pins, 12 ADC channels, and 14 PWM channels. Includes I2C, SPI, IrDA, UART, and USART interfaces, along with 4 timers/counters. Packaged in a 44-pin VQFN EP, suitable for surface mounting.
Frequency32MHz
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA64D4-MH technical specifications.
General
Package/Case
VQFN EP
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
8b
Frequency
32MHz
Height
1mm
Interface
I2C, SPI, IrDA, UART, USART
Length
7mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of ADC Channels
12
Number of I2C Channels
2
Number of Programmable I/O
34
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
360
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
4KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA64D4-MH Datasheet
Download the complete datasheet for Microchip ATXMEGA64D4-MH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

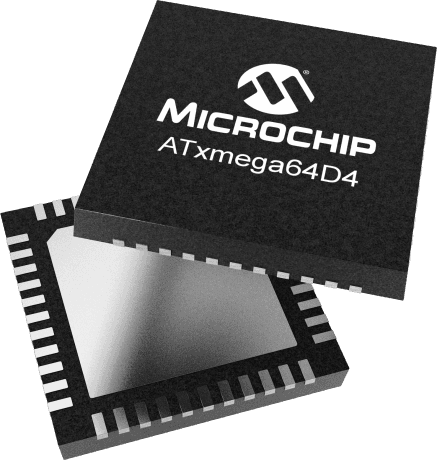

Product Images
