Bluetooth v4.0 (BLE) + EDR SMART SOC module supporting IoT applications. Features 3Mbps data rate and 2.4GHz frequency operation. Offers a sensitivity of -92dBm and operates with a supply voltage range of 3.3V to 4.3V. Current consumption is 70mA for both receiving and transmitting. Interface options include UART. This surface mount module is RoHS compliant and operates within a temperature range of -20°C to 70°C.
Frequency2.4GHz
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip BM77SPPS3MC2-0007AA technical specifications.
General
Package/Case
Module
Current - Receiving
70mA
Current - Transmitting
70mA
Data Rate
50Kbps
Frequency
2.4GHz
Height
2.4mm
Interface
UART
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Voltage
4.3V
Min Supply Voltage
3.3V
Mount
Surface Mount
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-92dBm
Width
22mm
Compliance
RoHS
Compliant
Datasheet
Microchip BM77SPPS3MC2-0007AA Datasheet
Download the complete datasheet for Microchip BM77SPPS3MC2-0007AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

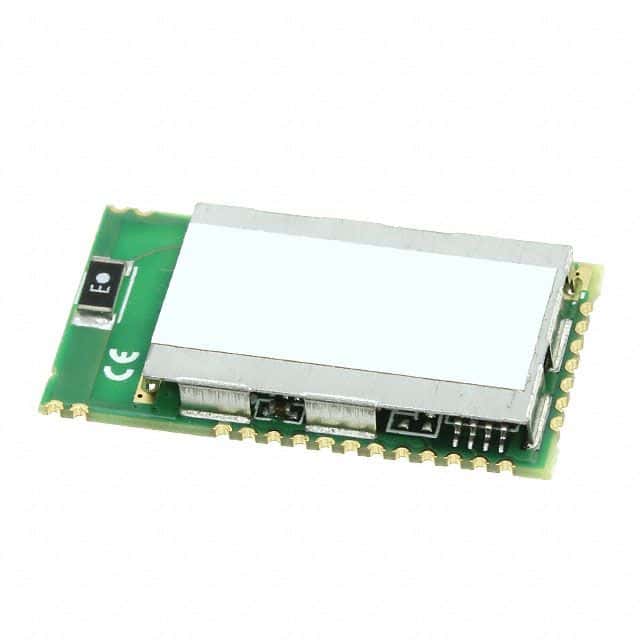

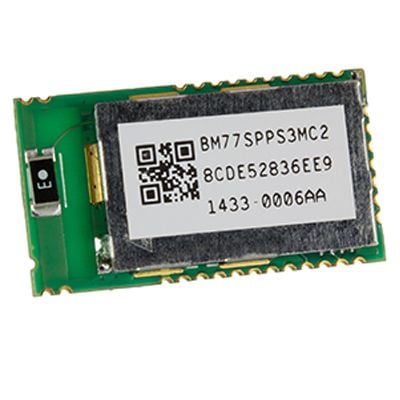

Product Images
