N-channel small signal JFET in TO-243AA package. Features 450V drain-to-source breakdown voltage and 100mA continuous drain current. Offers 60Ω drain-to-source resistance and 1.3W maximum power dissipation. Operates from -55°C to 150°C with a 20V gate-to-source voltage. Includes 120pF input capacitance and fast switching times with 10ns turn-on and 20ns turn-off delays. Surface mountable, lead-free component supplied on tape and reel.
PackageTO-243AA
MountingSurface Mount
PolarityN-CHANNEL
Power1.3W
Quick Jump:
Technical Specifications

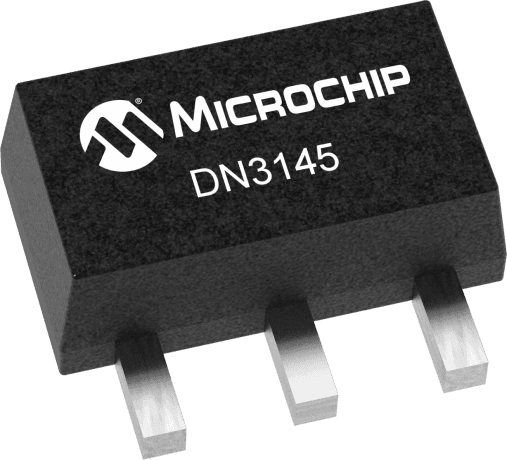

Microchip DN3145N8-G technical specifications.
General
Package/Case
TO-243AA
Continuous Drain Current (ID)
100mA
Drain to Source Breakdown Voltage
450V
Drain to Source Resistance
60R
Drain to Source Voltage (Vdss)
450V
Fall Time
15ns
Gate to Source Voltage (Vgs)
20V
Height
1.6mm
Input Capacitance
120pF
Lead Free
Lead Free
Length
4.6mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.3W
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Package Quantity
2000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
1.3W
Radiation Hardening
No
Rds On Max
60R
Reach SVHC Compliant
Unknown
Turn-Off Delay Time
20ns
Turn-On Delay Time
10ns
Weight
0.001862oz
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip DN3145N8-G Datasheet
Download the complete datasheet for Microchip DN3145N8-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
