Technical Specifications
Microchip DSPIC30F1010-20E/MM technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.8V
Memory Size
6KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
dsPIC™ 30F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F1010-20E/MM Datasheet
Download the complete datasheet for Microchip DSPIC30F1010-20E/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

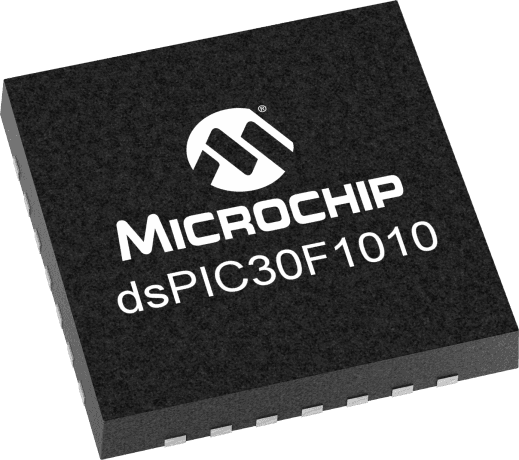

Product Images
